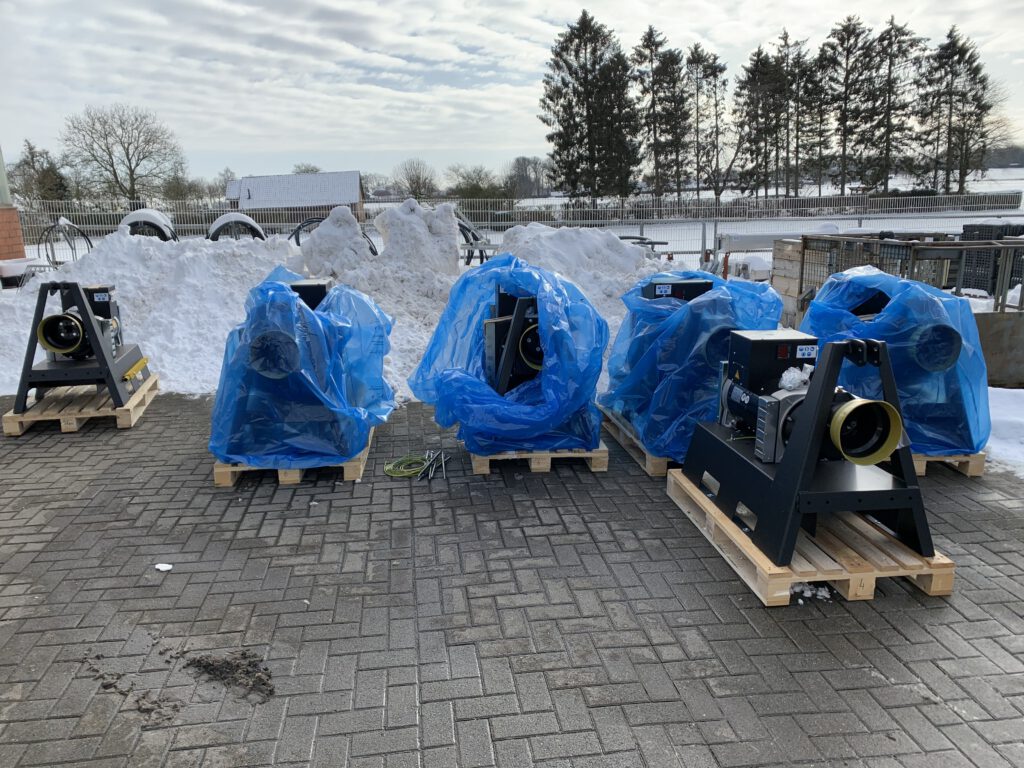

4-poliger Synchrongenerator
Antriebsdrehzahl 430 U/min.
Ausstattung:
Voltmeter, Amperemeter, Frequenzanzeige, FI Schutzschalter 30mA.
Elektronisch geregelt.
2 Steckdosen mit Sicherungen für 230 Volt und 400 Volt
Betriebsbereit auf Metallrahmen montiert.
3-Punkt-Aufnahme für die Ackerschiene.
Von der Berufsgenossenschaft zugelassen.
Leistung (kVA) | Gewicht (kg) | D (mm) | L (mm) | H (mm) | B (mm) | X (mm) | E (mm) | V (mm) | Z (mm) | CEE (Steckdose) | Sicherung (Ampere) |
---|---|---|---|---|---|---|---|---|---|---|---|
12,5 | 230 | 860 | 920 | 850 | 870 | 530 | 860 | 610 | 740 | 32 A | 20 / 10 |
25 | 300 | 860 | 920 | 850 | 870 | 530 | 860 | 610 | 740 | 63 A | 40 / 10 |
40 | 350 | 640 | 1181 | 985 | --- | 697,5 | 888,4 | --- | --- | 63 A | 63 / 10 |
60 | 380 | 640 | 1181 | 985 | --- | 697,5 | 888,4 | --- | --- | 125 A | 80 / 10 |
80 | 450 | 860 | 1120 | 950 | 870 | 600 | 860 | 610 | 740 | 125 A | 125 / 10 |
